Some swimming-goggle lens problems are difficult to see when a lens is held in your hand. They appear only after the left and right lenses are assembled, positioned close to the eyes, or used in the water. A lens can look bright and transparent but still create image shift, unequal visual feeling, glare, or discomfort.
That is why we do not treat a swimming-goggle lens insert as one small polished cavity. At Yishun Optical, we treat the left and right inserts as parts of a paired optical system. Our swimming goggles lens mold insert machining service focuses on the surface form, mirror quality, optical-center position, edge geometry, and consistency that your finished-lens validation depends on.
A Small Lens, but a Paired Optical System
A small deviation that may seem acceptable on one insert can become more noticeable when two lenses are worn together. Differences in curvature, optical-center position, datum transfer, or edge fit may change how the two eyes receive the image. The front and rear lens surfaces, final thickness, and assembly condition also work together, so one roughness value cannot describe the complete result.
Use: A swimming goggles lens mold insert forms the optical and mechanical surfaces of a molded swimming-goggle lens. It may define the front or rear optical surface, curvature, optical center, edge profile, thickness transition, locating features, and the area that fits the frame or seal structure. We support plano, curved, aspheric, matched left/right, and customer-defined optical-power designs.

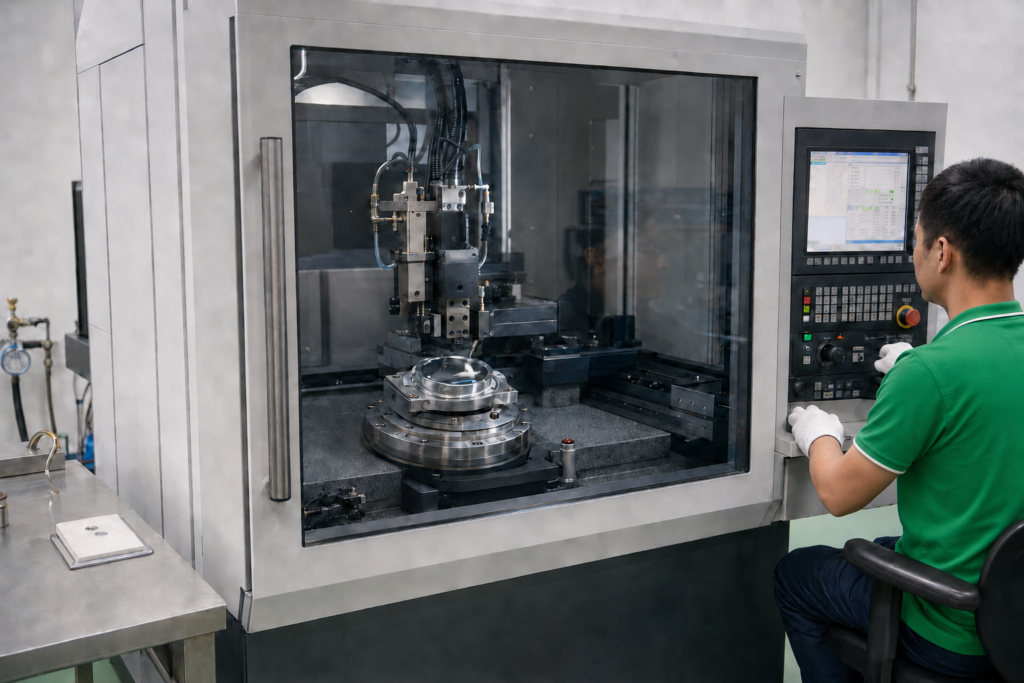

Production process: Depending on material, hardness, coating condition, curvature, optical aperture, and surface requirement, we may use ultra-precision machining, five-axis mirror machining, precision grinding, or a controlled combined process. We confirm the route only after reviewing the drawing and material. The aim is to achieve the required mirror surface without losing the approved form, optical center, or edge details.
Precision standard: We work to the approved drawing, model, datum system, optical-surface definition, and inspection plan. Selected optical mold projects have achieved dimensional accuracy up to ±0.005 mm, form accuracy P/V ≤0.2 μm, and surface roughness Ra 0.005 μm under suitable conditions. These are selected capabilities rather than automatic limits for every insert. We confirm the final values after reviewing the geometry, material, and measurement method.
What Must Be Controlled on a Swimming Goggles Lens Mold Insert
Optical Zone
The viewing area needs more than visual gloss. Form, waviness, roughness, periodic marks, scratches, and transitions can all affect a transparent lens. We define the optical and surrounding zones separately.
Optical Center and Datum
The optical center needs a clear relationship with the outside profile, locating features, and assembly references. Otherwise, a lens may pass a surface check but sit incorrectly after assembly.
Edge and Frame-Fitting Area
Edge profile, thickness transitions, small radii, and frame-contact features can influence fit and assembly stress. We therefore review them together with the optical surface.
Left/Right and Cavity Matching
Matched inserts need shared datums and comparison rules for handed geometry, optical-center position, form, edge dimensions, and agreed inspection points.
Key Technical Parameters
| Item | Typical Capability or Requirement |
|---|---|
| Service | Build-to-print swimming goggles lens mold insert machining for new inserts, prototypes, replacements, matched pairs, and multi-cavity sets |
| Lens-surface geometry | Plano, spherical, aspheric, cylindrical, toric, high-base-curve, off-axis, and customer-defined surfaces after review |
| Insert materials | Customer-specified mold steels, aluminum alloys, copper alloys, and electroless-nickel-plated substrates after material and hardness review |
| Selected dimensional accuracy | Up to ±0.005 mm on selected optical mold projects; confirmed according to size, datum, geometry, and measurement method |
| Selected form accuracy | P/V ≤0.2 μm achieved on selected projects under suitable geometry and inspection conditions |
| Selected surface roughness | Ra 0.005 μm achieved on selected mirror-surface projects under suitable material and machining conditions |
| Pair and cavity consistency | Left/right form and datum comparison, cavity-to-cavity comparison, or customer-defined matched-set criteria |
| Inspection options | CMM, white-light interferometry, roughness measurement, microscopy, optical scanning, profile comparison, and agreed visual inspection |
Final capacity is confirmed after complete-part review. We do not apply one roughness or tolerance value to every area when the optical surface, edge, locating feature, and non-optical zones perform different functions.
Swimming Goggles Lens Mold Insert Configurations We Can Customize
Plano and Low-Curvature Lens Inserts
Key controls include optical-zone uniformity, waviness, edge geometry, and alignment with the frame.
Curved and High-Base-Curve Lens Inserts
Higher curvature makes form and optical-center position more sensitive. We review the viewing zone, transition, access, and inspection method.

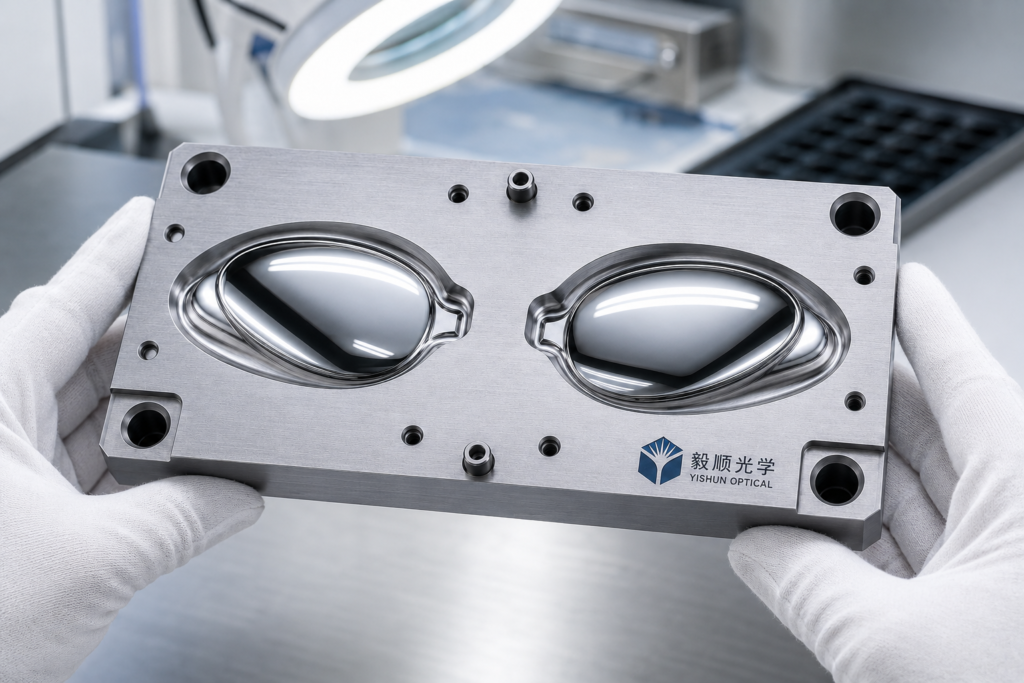

Matched Left/Right Lens Insert Pairs
We compare approved handed geometries using common datums to reduce differences in image position, edge fit, and assembly.
Customer-Defined Optical-Power Inserts
We machine customer-designed optical-power surfaces from approved data. Optical power, prism, surface combination, and final performance remain subject to customer validation.
Adult and Junior Lens Size Variants
Different sizes may change the aperture, curvature transition, edge position, and assembly references. We evaluate each approved size as its own geometry.
Prototype and Replacement Inserts
We review prototypes, trial inserts, and replacements. Original data and current defect information help define replacement matching.

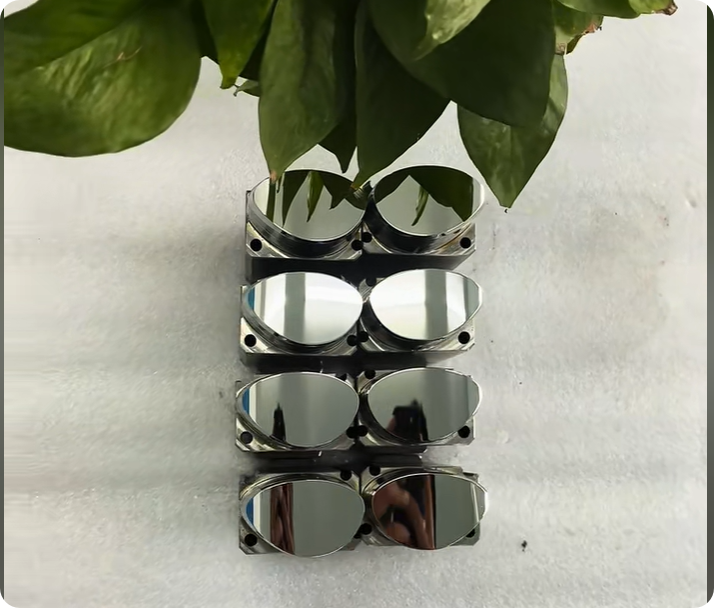

Matched Multi-Cavity Insert Sets
Shared drawing references and comparison items help reduce variation, sorting, adjustment, and inconsistent appearance across cavities.
Problems That Usually Appear in the Finished Swimming Lens
1. The Lens Is Clear but Feels Distorted When Worn
A glossy surface can still have form deviation, waviness, or an incorrect relationship between the optical center and datum. Close to the eyes, a small deviation may cause blur, image movement, or discomfort.
How we respond: We confirm the aperture, nominal surface, datums, and profile method before machining. Inspection covers the viewing area and critical transitions, not just one point or a brightness check.
2. The Left and Right Lenses Do Not Feel the Same
A mirrored CAD model does not automatically create a matched pair. Handed features, orientation, datum transfer, optical-center position, and form differences may create unequal visual behavior.
How we respond: We apply the same form, center-position, datum, edge, and reporting definitions to both inserts, giving your team clearer evidence for pair approval.
3. Fine Surface Marks Become Visible Through the Transparent Lens
Tool marks, micro-scratches, local roughness, contamination, or periodic patterns may replicate into the lens as haze, glare, visible lines, or inconsistent clarity.
How we respond: We separate roughness, periodic marks, local defects, and appearance in acceptance. Controlled handling, cleaning, inspection, and packaging help preserve the surface.
4. The Lens Changes After It Is Installed in the Frame
A lens may look acceptable before assembly but change after its edge is supported by the frame or seal. An unclear relationship between the optical surface, profile, locating features, and thickness can create stress.
How we respond: We review optical and mechanical datums together and flag thin zones, transitions, and small radii. Frame-contact and locating features are included in acceptance.
5. Different Cavities Produce Different Visual Results
Several inserts may pass basic checks but still differ in optical appearance, center position, or edge fit. Different acceptance methods add sorting and troubleshooting difficulty.
How we respond: Shared drawing references and comparison items focus cavity review on the features that affect the finished lens.
The Mold Insert Cannot Be Evaluated by Ra Alone
A low Ra value does not prove that form, optical center, left/right matching, or edge geometry is correct. It may also miss waviness, periodic marks, isolated scratches, or differences caused by scan length, filter, position, and instrument.
We therefore do not use “mirror finish” as one undefined term. We clarify optical areas, measurable values, inspection locations, and pair or cavity comparisons. This makes swimming goggles lens mold insert machining easier to approve and repeat.
What Yishun Helps You Reduce
Reduce Rework Before Material Is Committed
We review curvature, aperture, material, small radii, edge transitions, datums, and inspection access. Early questions can prevent a complete rework cycle.
Reduce the Gap Between a Bright Insert and a Usable Optical Insert
We control mirror quality with curvature, optical-center position, edge features, and datums, helping avoid later form or assembly problems.
Reduce Left/Right and Cavity Variation
Shared drawing references and inspection logic provide a clearer basis for matching, sorting, troubleshooting, and repeat orders.
Reduce Disputes About “Mirror Finish”
Agreed inspection items, locations, methods, and report expectations help all teams evaluate the insert against the same definitions.
Make Prototypes and Replacements Easier to Manage
We evaluate one trial insert, replacement, matched pair, or multi-cavity set according to its real project scope.
Inspection and Responsibility Boundary
Our responsibility is to machine and inspect the mold-insert characteristics agreed in the drawing and project plan. Depending on the insert, this may include dimensions, form, roughness, optical-center position, edge condition, left/right comparison, and cavity consistency. The inspection method must match the feature being accepted; no single instrument describes every condition.
The insert is only one contributor to the finished swimming goggles. Final vision, optical power, anti-fog behavior, scratch resistance, sealing, comfort, and market compliance also depend on the optical design, lens resin, molding conditions, thickness, coating, frame, seal, strap, assembly, and finished-product testing. We support the mold-related requirements but do not present insert machining as finished-product certification.
Information Needed for a Swimming Lens Insert Review
- Left and right lens 2D drawings and 3D models in STEP, IGES, X_T, DWG, or other agreed formats
- Insert material, hardness, heat treatment, and coating condition
- Front or rear optical surface and the usable optical aperture
- Optical and mechanical datums
- Critical dimensions, form or profile tolerance, roughness, and visual standard
- Left/right matching or cavity-consistency requirements
- Inspection method and report format
- Quantity, delivery target, and current defect information
- Finished lens resin, coating route, validation requirement, and photos of the current defect when available
FAQ
Can you machine curved or aspheric swimming-goggles lens mold inserts?
Yes, subject to drawing review. We evaluate the curvature, optical aperture, material, feature access, datum system, and inspection method before confirming feasibility and tolerance.
Can you manufacture only one prototype or replacement insert?
Yes. We review prototypes, trial inserts, replacement inserts, matched left/right pairs, and multi-cavity sets. For a replacement, please provide the original drawing and any available comparison data.
Can you guarantee Ra 0.005 μm for every insert?
No. Ra 0.005 μm has been achieved on selected projects under suitable conditions, but the final result depends on material, hardness, geometry, coating, optical aperture, and measurement method. We confirm the target after review.
Can you machine inserts for different optical powers?
We can machine customer-defined optical-power surfaces from approved engineering data. We do not independently prescribe the lens power, and the finished optical performance must be validated by the customer.
Does the mold insert create anti-fog or scratch-resistant performance?
No. Anti-fog and scratch resistance are mainly controlled by the lens material, molding process, surface treatment, and coating. We control the agreed mold surface and geometry but do not claim those finished-lens functions.
Can the mold insert alone guarantee that the finished swimming goggles pass a market standard?
No. Final compliance depends on the complete product, including lens material, thickness, frame, seal, strap, assembly, coating, and finished-product testing. We support the mold-related requirements defined in your drawing and validation plan.
Let’s Review Your Swimming Goggles Lens Mold Insert
If you are dealing with distortion, left/right mismatch, visible surface marks, unstable cavity results, or a difficult replacement insert, send us the left and right lens data and tell us what happens in the finished product. We will review the optical zone, datums, material, precision, pair requirement, inspection method, and order scope before recommending a manufacturing route.
Contact Yishun Optical for a free drawing review and quotation for custom swimming goggles lens mold insert machining.
